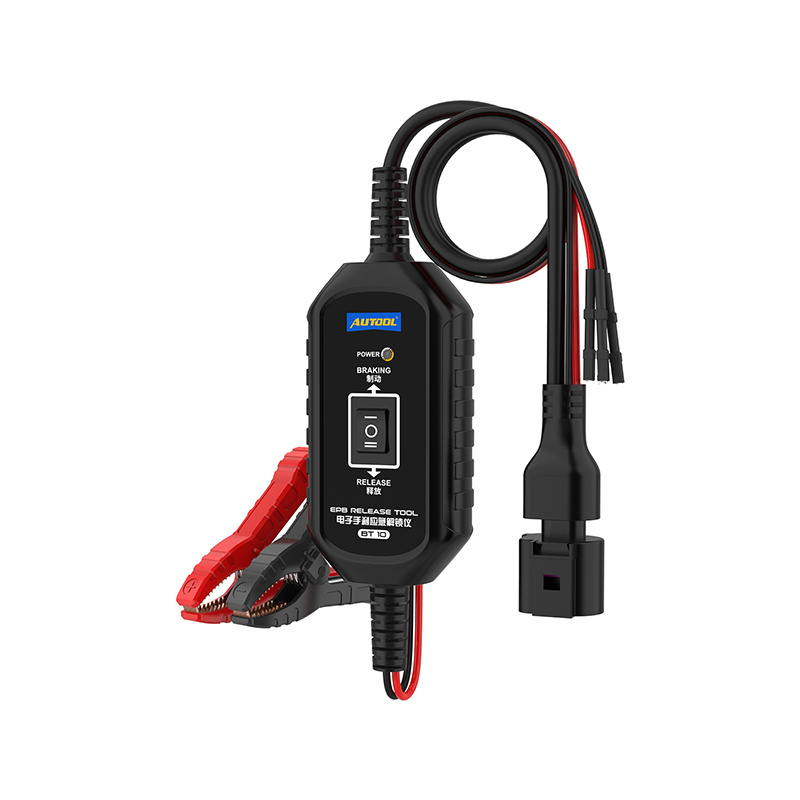

AUTOOL BT10Product OverviewThe AUTOOL BT10 EPB Release Tool is designed to temporarily release or engage an electronic parking brake during EPB system failure, emergency towing, workshop vehicle movement, and rear brake maintenance. The release mode helps quickly disengage the EPB so the vehicle can exit the parked state, while the braking mode engages the EPB again to support safe parking.Compared with forced disassembly or violent resetting methods, the BT10 EPB reset tool can help reduce repair cost, protect brake components, and save working time during troubleshooting or maintenance. It is a temporary service tool, not a permanent repair for EPB faults. EPB Release Braking / Release Emergency Rescue 5A FuseDC 10V-14VOperating Voltage<15AWorking Current1sAuto Stop3 YearsMain Unit Warranty Click to enlarge Click to enlargeProduct ComparisonProduct ComparisonUse BT10 when you need temporary EPB motor release support during rescue, movement, and maintenance workflows. Compare it against full diagnostic paths before choosing the operation route.BT10 FocusTemporary EPB motor release support with direct wiring workflow for rescue and maintenance operations.Not A Permanent RepairBT10 helps release locked brakes; it does not permanently repair EPB control-system faults.Electrical SafetyRequires DC 10V-14V supply, correct polarity wiring, and a verified 5A fuse before operation.Decision CheckChoose BT10 for field release and movement scenarios; choose deeper diagnostic tools when root-cause code diagnosis is required. Click to enlargeKey FeaturesKey FeaturesThe BT10 combines dual-channel forward / reverse motor control, overload protection, reverse polarity protection, power-on self-check, and built-in fuse protection for safer temporary EPB release and engagement.Dual-Channel ControlSupports forward and reverse motor control to quickly release or engage the EPB with one-button operation.Emergency EPB ReleaseWhen the EPB cannot release because of sensor failure, control module malfunction, wiring issues, or unexpected system failure, the BT10 helps temporarily disengage the brake for repair or rescue.Braking ModeThe reverse / braking mode can engage the EPB again after service or movement, helping support safe parking when the operation is complete.Overload ProtectionWhen applying or releasing the EPB, voltage output lasts for only about 1 second and then automatically stops, even if the button is held down.Multiple Circuit ProtectionsIncludes reverse polarity protection, automatic power-on self-check, green operating status indicator, overcurrent protection, and a built-in 5A fast-blow fuse.Lower Repair RiskHelps avoid damage to the EPB motor, brake caliper, and brake wheel cylinder that may be caused by forced disassembly or violent resetting. Click to enlarge Click to enlarge Click to enlargeApplicationsApplicationsUse the BT10 in temporary EPB release scenarios where quick brake release is needed for rescue, repair, maintenance, or vehicle movement.EPB System TroubleshootingIf a sensor failure, control module malfunction, wiring harness fault, or other defect prevents the EPB from releasing, technicians can use the BT10 to disengage the brake during inspection and repair.Emergency Road RescueWhen an EPB locks up after an unexpected incident, the tool can quickly release the brake so the vehicle can be moved, helping prevent tire damage caused by forced dragging.Workshop Vehicle MovementWhen an electronic handbrake locks because of power or circuit failure, the BT10 helps release the brake so the vehicle can be relocated in a workshop or dealership.Brake Repair And MaintenanceWhen servicing brake calipers, replacing rear brake pads, or maintaining the brake wheel cylinder, the EPB reset tool helps release the brake and avoid forced disassembly damage. Click to enlargeSpecificationsAUTOOL BT10 SpecificationsConfirm operating voltage, working current, control mode, fuse protection, indicator, cable length, and warranty information before use.Product And FunctionProductAUTOOL BT10 EPB Release ToolFunctionTemporary EPB release and engagement for repair, rescue, vehicle movement, and maintenanceControl ModeDual-channel forward / reverse motor controlOperationRocker switch braking / release operationInterfaceElectronic parking brake terminal interfaceElectrical And ProtectionOperating VoltageDC 10V-14VWorking Current<15AFuseBuilt-in 5A fast-blow fuseProtectionReverse polarity protection, overcurrent protection, overload protection, and power-on self-checkIndicatorPower indicator light; green light indicates normal power statusCable And Size ReferencePower Cable Length1m battery clamp cableTool Cable Length0.5m upper cableMain Unit Size Reference102mm height / 55mm widthSupportMain Unit Warranty3-year warranty for eligible non-human damage casesAccessories WarrantyAccessories covered according to manual termsSupportSetup, EPB terminal connection, fuse, motor direction, and warranty support Click to enlarge Product And FunctionProductAUTOOL BT10 EPB Release ToolFunctionTemporary EPB release and engagement for repair, rescue, vehicle movement, and maintenanceControl ModeDual-channel forward / reverse motor controlOperationRocker switch braking / release operationInterfaceElectronic parking brake terminal interface Electrical And ProtectionOperating VoltageDC 10V-14VWorking Current<15AFuseBuilt-in 5A fast-blow fuseProtectionReverse polarity protection, overcurrent protection, overload protection, and power-on self-checkIndicatorPower indicator light; green light indicates normal power status Cable And Size ReferencePower Cable Length1m battery clamp cableTool Cable Length0.5m upper cableMain Unit Size Reference102mm height / 55mm width SupportMain Unit Warranty3-year warranty for eligible non-human damage casesAccessories WarrantyAccessories covered according to manual termsSupportSetup, EPB terminal connection, fuse, motor direction, and warranty support How To UseHow To UseUse BT10 only with proper DC 10V-14V power and trained operation. Stop immediately if the motor direction or EPB response does not match the expected operation.Prepare PowerPrepare a fully charged spare battery and check that the built-in 5A fuse is intact before operation.Connect ClampsConnect the red clamp to the positive terminal and the black clamp to the negative terminal. When power is normal, the indicator turns on.Connect EPB InterfaceConnect the EPB terminal interface to the vehicle’s external electronic parking brake drive port before operating the rocker switch.Release Or BrakeUse the rocker switch to select braking or release. Release the switch promptly when the brake caliper reaches the end position to avoid unnecessary drive force.Operation NotesBT10 is only for temporarily releasing or engaging the EPB during repair, rescue, or maintenance. It is not a permanent repair for EPB faults.Use the device only with DC 10V-14V power.Prepare a fully charged spare battery before operation.Check that the built-in 5A fuse is intact before use.Connect the red clamp to positive and the black clamp to negative.Do not connect or disconnect test equipment while the ignition is on or the engine is running.Release the rocker switch promptly after the brake caliper reaches the end position.If the motor direction does not match the operation description, the forward / reverse direction may be reversed. Stop and confirm the connection and vehicle port.Manual And DownloadsManual And DownloadsDownload the AUTOOL BT10 manual for safety rules, product structure, technical specifications, operating steps, maintenance, and warranty information. Click to enlargeAUTOOL BT10 User ManualOpen the PDF manual for BT10 specifications, wiring, fuse checks, operation, safety rules, and warranty information. Download ManualNeed Setup Confirmation?Contact AUTOOL Store before use if you need help confirming the EPB terminal connection, motor direction, fuse replacement, temporary release procedure, or warranty terms. Email[email protected] WhatsApp 86 189 2647 7404Related ProductsRelated ProductsCompare related AUTOOL test leads, circuit testers, breakout box options, and emergency power accessories before choosing the right BT10 support workflow.Select options This product has multiple variants. The options may be chosen on the product page Add to wishlist Add to compare Quick view iconQuick view Used Car Diagnostic TesterAUTOOL BT10 EPB Release ToolRated 0 out of 5(0) From US$30.00 Select options This product has multiple variants. The options may be chosen on the product page Select options This product has multiple variants. The options may be chosen on the product page Add to wishlist Add to compare Quick view iconQuick view Automotive Circuit TesterAUTOOL BT250 Car Electrical Circuit Tester 6V-30VRated 0 out of 5(0) From US$39.00 Select options This product has multiple variants. The options may be chosen on the product page Select options This product has multiple variants. The options may be chosen on the product page Add to wishlist Add to compare Quick view iconQuick view Automotive Circuit TesterAUTOOL BT30 ECU Emergency Power Supply Cable Includes 3A FuseRated 0 out of 5(0) From US$29.00 Select options This product has multiple variants. The options may be chosen on the product page Select options This product has multiple variants. The options may be chosen on the product page Add to wishlist Add to compare Quick view iconQuick view Used Car Diagnostic TesterAUTOOL OBD2 Breakout Box Protocol Detector Upgraded VersionRated 0 out of 5(0) From US$109.00 Select options This product has multiple variants. The options may be chosen on the product page Compatibility And FitmentCompatibility And FitmentThese power supply tools are not direct EPB devices, but they are often used together with BT10 in workshop electrical diagnosis, battery support, and vehicle movement workflows.Select options This product has multiple variants. The options may be chosen on the product page Add to wishlist Add to compare Quick view iconQuick view Battery System TesterAUTOOL EM365 Power Inverter New VersionRated 5.00 out of 5(1) From US$550.00 Select options This product has multiple variants. The options may be chosen on the product page Select options This product has multiple variants. The options may be chosen on the product page Add to wishlist Add to compare Quick view iconQuick view Battery System TesterAUTOOL EM385 Auto Power Inverter ECU ProgrammingRated 0 out of 5(0) From US$629.00 Select options This product has multiple variants. The options may be chosen on the product page Select options This product has multiple variants. The options may be chosen on the product page Add to wishlist Add to compare Quick view iconQuick view Battery System TesterAUTOOL EM355 Power Inverter ECU ProgrammingRated 0 out of 5(0) From US$520.00 Select options This product has multiple variants. The options may be chosen on the product page Related GuidesRelated GuidesUse these related articles to understand brake-service context, battery support, and ECU power workflows before using BT10.Guide / 2025-09-01Common Abnormal Issues with Car BrakesReview brake symptoms and service contexts that often lead to EPB troubleshooting and temporary release work.Guide / 2021-10-01How to test a car battery with a right tester？Understand battery-testing basics before using BT10 with a spare 12V source in rescue or workshop movement scenarios.Guide / 2025-07-01Automotive Battery Charging and ECU Programming Stabilized Voltage 2-in-1 Machine-AUTOOL EM Power InverterSee how a stable power supply supports workshop electrical service when BT10 is used around low-battery or recovery situations.Guide / 2024-09-27AUTOOL BT960 Battery Tester-Essential Tool For The WorkshopAdd battery-condition checks to the same workflow when confirming whether EPB release problems are tied to weak vehicle power. Click to enlargeWhat Is In The BoxWhat Is In The BoxReview the package image to confirm the BT10 main unit, cable, EPB terminal interface, manual, and product box before use.Main UnitAUTOOL BT10 EPB Release ToolPower ClampRed / black battery clamp power cableEPB Terminal InterfaceElectronic parking brake terminal connectorFuseBuilt-in 5A fast-blow fusePackageProduct box shown in imageManualUser manual includedBefore You Order And UseBefore You Order And UseBT10 is a temporary EPB service tool. Confirm the use case, wiring, fuse, power supply, and motor direction before operation.Safety And Use NotesThe AUTOOL BT10 EPB Release Tool is only for temporarily releasing the EPB to facilitate rescue, movement, inspection, repair, or maintenance.BT10 does not provide a permanent solution to the vehicle’s EPB system fault.Use only with DC 10V-14V power and do not overload the device.Confirm that the built-in 5A fast-blow fuse is intact before use.After powering on, the device performs a system self-check and visually indicates operating status with a green light.Reverse polarity protection helps reduce device damage risk when the positive and negative terminals are connected incorrectly.Do not connect or disconnect test equipment while the ignition is on or the engine is running.Keep the device away from rain, water, damp environments, heat sources, oil, sharp edges, and moving parts.Use only by trained or qualified personnel.If the motor direction or EPB response does not match the operation description, stop operation and confirm the wiring and vehicle-side EPB terminal connection.Questions And AnswersThese answers cover BT10 use cases, temporary release limits, power supply, braking / release mode, pre-operation checks, protection functions, motor direction, and warranty. What Is AUTOOL BT10 Used For? AUTOOL BT10 is used to temporarily release or engage an electronic parking brake during EPB system troubleshooting, emergency towing, workshop vehicle movement, brake pad replacement, brake caliper service, and rear brake maintenance. Is BT10 A Permanent Repair For EPB Problems? No. BT10 is only a temporary EPB release and engagement service tool. It helps facilitate rescue, inspection, movement, or maintenance, but it does not permanently repair the vehicle’s EPB system fault. What Power Supply Does BT10 Need? BT10 requires DC 10V-14V power. Prepare a fully charged spare battery before operation and connect the red clamp to positive and the black clamp to negative. What Is The Difference Between Braking Mode And Release Mode? Braking mode engages the EPB to support safe parking. Release mode disengages the EPB so the vehicle can be moved during repair, rescue, or maintenance. What Should I Check Before Operation? Check that the spare battery is fully charged, the built-in 5A fuse is intact, the red and black battery clamps are correctly connected, and the EPB terminal interface is properly connected to the vehicle-side EPB drive port. Why Does The Output Stop After About 1 Second? This is the overload protection design. When applying or releasing the EPB, the voltage output lasts only about 1 second before automatically stopping, even if the button is held down. This helps protect the EPB motor, brake caliper, and brake wheel cylinder. What If The Motor Direction Seems Reversed? If the switch operation result does not match the expected braking or release action, the motor forward / reverse direction may be reversed. Stop operation and confirm the vehicle-side EPB terminal connection and operating direction before continuing. What Protection Features Does BT10 Have? BT10 includes reverse polarity protection, power-on self-test indicator, overcurrent protection, overload protection, and a built-in 5A fast-blow fuse to help protect the device, EPB motor, brake caliper, and brake wheel cylinder. How Long Is The Warranty? AUTOOL provides 3-year warranty support for eligible non-human damage cases on the main unit. Accessories are covered according to the manual terms. Contact AUTOOL Store for warranty and replacement parts support.Warranty And ContactWarranty And ContactFor BT10 setup confirmation, EPB terminal connection support, fuse replacement, motor braking / release direction confirmation, temporary release guidance, emergency towing use, workshop movement support, or warranty questions, contact AUTOOL Store directly.Pre-Sales And Product SupportUse support if you need help confirming whether BT10 fits your EPB release scenario, checking the vehicle-side EPB terminal connection, confirming the rocker switch direction, replacing the fuse, or understanding main unit and accessory warranty coverage.BT10 EPB release setup confirmationEPB terminal connection supportFuse replacement and protection troubleshootingMotor braking / release direction confirmationWarranty and replacement parts supportEmergency towing and workshop movement use confirmation Email Support[email protected] WhatsApp Support 86 189 2647 7404
